Precision Weather Simulation for Water Ingress Testing

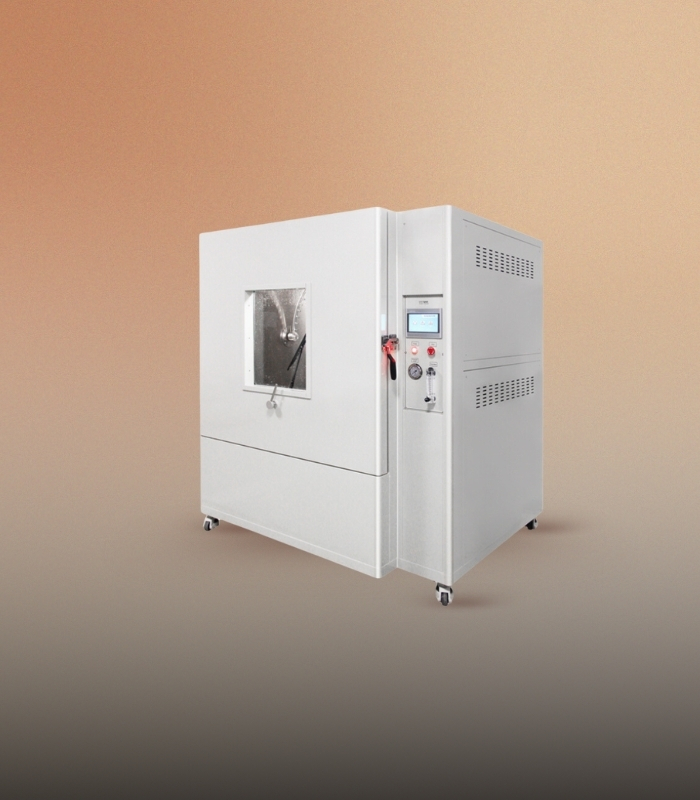

The Rain Test Chamber by Servo Enterprises is a high-performance environmental simulation system designed to test the resistance of components and enclosures to water ingress under controlled rainfall conditions. Engineered to comply with IPX1 to IPX6 standards, this chamber ensures that your products meet international quality benchmarks for waterproof performance.
From automotive parts and electrical enclosures to lighting fixtures and consumer electronics, our Rain Test Chamber simulates natural and artificial rainfall environments, helping manufacturers assess durability, ensure compliance, and reduce product failure rates.
IP Protection Testing
Conforms to IPX1, IPX2, IPX3, IPX4, IPX5 & IPX6 water ingress standards.
Programmable Rainfall Patterns
Adjustable droplet size, spray angle, water pressure & duration.
Digital Control Panel
Intuitive HMI with programmable test cycles and real-time monitoring.
Stainless Steel Interior
Corrosion-resistant chamber construction for long-term durability.
Precision Nozzle System
Uniform water distribution simulating real-world rain conditions.
| Product Name | Servo Rain Test Chamber |
| Application | Ingress Protection (IPX1–IPX6) Water Resistance Testing |
| Compliance Standards | IEC 60529, ISO 20653, JIS D0203 |
| Test Levels | IPX1 to IPX6 |
| Chamber Volume | 500L to 2000L (Customizable) |
| Spray Types | Drip, Oscillating Tube, Jet Nozzle |
| Water Flow Rate | 1 to 100 L/min |
| Spray Pressure | 30 to 100 kPa |
| Turntable Speed | 1–10 RPM (Adjustable) |
| Turntable Load | 25–100 kg |
| Angle Adjustment | Oscillating Arm / Manual Angle Setup |
| Construction Material | SS304 Inner, MS Powder Coated / SS Outer |
| Water Supply System | Recirculating with Filter |
| Drainage System | Auto Drain / Floor Outlet |
| Observation Window | Toughened Glass with LED Light |
| Control System | Digital / PLC with Touch HMI (Optional) |
| Power Supply | 230V / 415V AC, 50Hz |
| Safety Features | Door Lock, Overload, Low Water Alarm |
| Automation Type | Semi-Automatic / Fully Automatic |
| Optional Features | HMI, Data Logger, IPX7/8 Tank |
| Brand | Servo Enterprises |
| Country of Origin | Made in India |
Our Rain Test Chambers are crafted with precision, ensuring that every test yields reliable, repeatable results. With Servo’s commitment to quality and customization, the respective industries can confidently test, validate, and launch durable products into the market.
