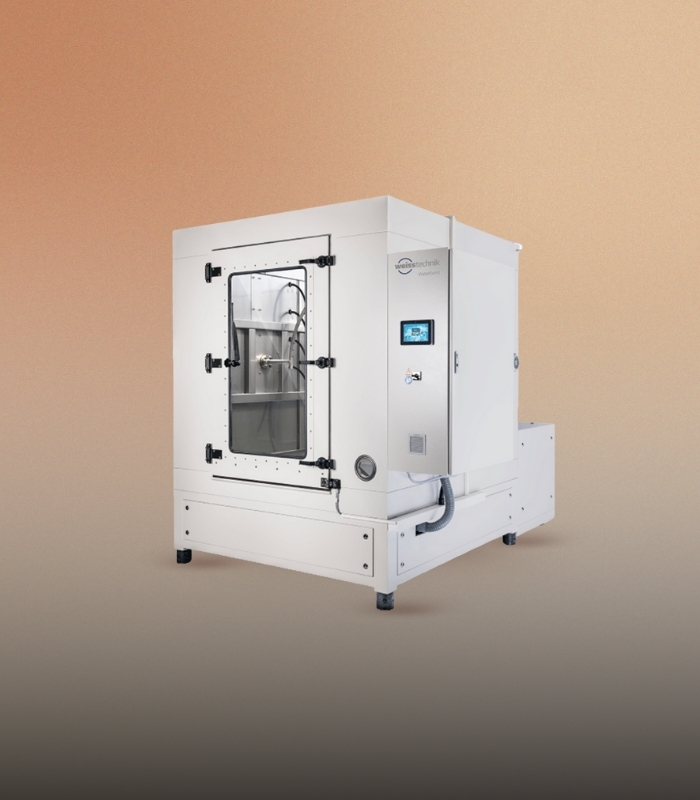

Water Spray Chamber for Industrial Purposes
Servo Enterprises’ Water Spray Chamber is a one of the environmental testing solutions designed to evaluate the water ingress protection (IP) levels of products and components. Built with precision and durability at its core, this chamber simulates rain, spray, and water jet conditions under controlled parameters, enabling manufacturers to assess the resistance of enclosures and materials to water intrusion.
Ideal for IPX1 to IPX6 testing and beyond, the Water Spray Chamber ensures compliance with international testing standards such as IEC 60529. Crafted using corrosion-resistant stainless steel, it offers reliable, long-term performance for a wide range of industries—from automotive electronics to electrical enclosures and outdoor equipment.
Stainless Steel Construction
Inner and outer walls made of high-grade SS304/SS316 for corrosion resistance and structural integrity.
Adjustable Spray Nozzles
Multiple nozzles positioned to simulate water impact at various angles and pressures, adhering to standard IP test classifications.
Rotary Table
For uniform exposure of test specimens, especially for IPX3 & IPX4 requirements.
Integrated Water Filtration System
Ensures clean and consistent water quality, minimizing test contamination and nozzle clogging.
Transparent Viewing Window
Toughened glass panel with LED illumination for real-time observation during testing.
Safety Mechanisms
Overload protection, emergency stop, low water level alarms, and automatic drainage ensure operational safety.
| Product Name | Servo Water Spray / Rain Test Chamber |
| Application | Water Resistance & IPX Testing (IPX1 to IPX6) |
| Test Standard | IEC 60529, IS/ISO 20653, JIS D0203 |
| Chamber Volume | 500L to 2000L (Customizable) |
| Spray Types Supported | IPX1 to IPX6 (Drip, Tube, Jet Nozzle) |
| Spray Pressure | 30–100 kPa (Adjustable) |
| Spray Angle | Adjustable via Tube / Oscillator |
| Turntable Speed | 1–10 RPM |
| Turntable Load | 25–100 kg |
| Construction Material | Inner: SS304, Outer: SS / MS Coated |
| Control Panel | Digital Timer, Pressure Display, Speed Control |
| Water Supply System | Recirculating with Filter |
| Drainage System | Floor Drain / Auto Pump |
| Observation Window | Toughened Glass with LED Light |
| Power Supply | 230V / 415V, 50Hz |
| Safety Features | Door Lock, Water Sensor, Emergency Stop |
| Automation Type | Semi / Fully Automatic |
| Optional Features | HMI / PLC, IPX7/8 Integration, Data Logging |
| Brand | Servo Enterprises |
| Country of Origin | Made in India |
With decades of expertise in Industrial Laboratory Equipment, Servo Enterprises combines innovative engineering, stringent quality control, and customer-centric customization to deliver state-of-the-art environmental test chambers. Our Water Spray Chambers are engineered to perform and built to last—ensuring your products thrive in real-world environments.
