Auto clave

Autoclave for High-Pressure Steam Processing Solution

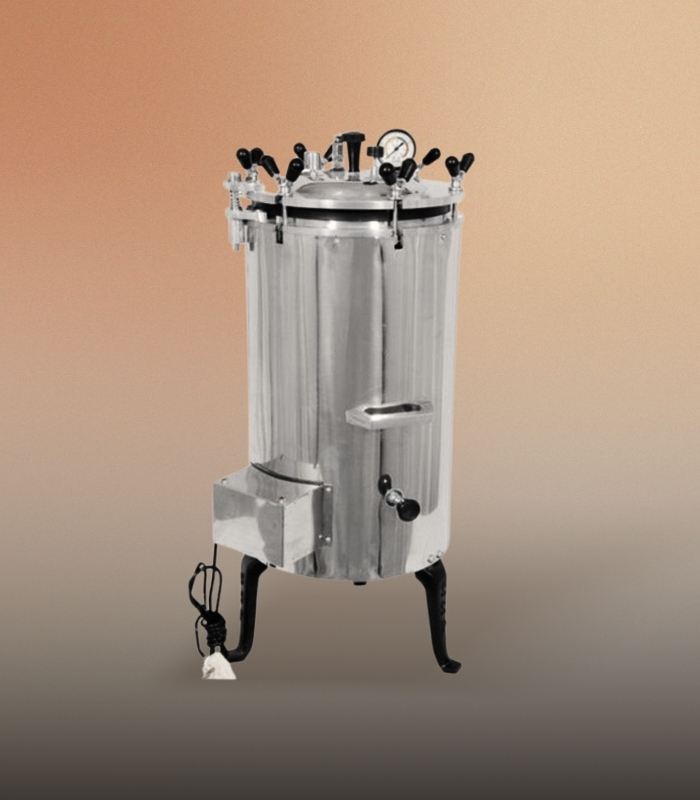

Autoclave

Servo Enterprises’ Industrial Autoclaves are high-performance sterilization systems designed to meet the rigorous standards of modern laboratories and industrial facilities. Built with robust materials and intelligent controls, our autoclaves ensure uniform steam penetration, precise temperature regulation, and contamination-free results across a wide range of critical processes.
From sterilizing laboratory instruments to curing composite materials and heat-treating industrial components, Servo Autoclaves are the backbone of consistent, validated sterilization. Engineered for durability, safety, and performance, they are fully customizable to suit specific pressure, temperature, and chamber size requirements.

Key Features

Chamber Integrity

Stainless steel (SS-304/SS-316) construction ensures corrosion resistance and long service life.

Digital Display Panel

Easy-to-use interface for monitoring cycle parameters and fault diagnostics.

Fully Programmable Cycles

Customizable sterilization profiles for different load types and industrial requirements.

Vacuum Drying System (Optional)

For moisture-sensitive materials and effective post-sterilization drying.

Safety Interlocks & Alarms

Over-temperature and pressure protection systems ensure operator safety.

Applications

Pharmaceutical & Biotechnology

Clinical & Diagnostic Laboratories

Mechanical & Industrial Manufacturing

Defense & Space Research

Food, Beverage & Dairy Processing

Primary Benefits

Validated Performance

Ensures sterilization cycles meet industry and regulatory standards

Custom-Engineered Solutions

Tailored to your unique process requirements and infrastructure

Energy-Efficient Operation

Optimized heating systems reduce power consumption

Robust and Long-Lasting

Built with industrial-grade components to withstand continuous operation

Complete Operator Safety

Advanced interlocks and alarms minimize operational risks

Technical Specifications

MODEL a) Rectangular/Horizontal SARH 1 SARH 2 SARH 3 SARH 4
b) Cylindrical/Horizontal SACH 1 SACH 2 SACH 3 SACH 4
c) Cylindrical/Vertical SACV 1 SACV 2 SACV 3 SACV 4
Chamber Size Cap a) – L x W x H cm/l 40 x 40 x 60 / 96 45 x 45 x 80 / 162 60 x 60 x 120 / 432 90 x 90 x 150 / 1215
b) & c) Dia x Depth cm/l 40Ø x 60 / 75 45Ø x 80 / 127 60Ø x 120 / 340 90Ø x 150 / 954
CONSTRUCTION DOUBLE WALLED
MATERIAL OUTER Mild steel sheet finished with powder coating
INNER CHAMBER Stainless Steel
Sterilization system High pressure through steam boiler
Working pressure kg/cm² 1 to 1.5
Heater Kw 6 9 12 24
Boiler Capacity (dia x depth) cm/l 30ø x 45/32 45ø x 60/95 55ø x 70/166 60ø x 80/226
Pressure gauge range kg/cm² 0 to 3
Working Temperature range °C Ambient +5°C to 131°C
Temperature controller PID Digital temp. controller
Safety Valve Adjustable pressure and Steam cock
Power Source AC 440v – Three phase / AC 220v, 50/60 hz, Single phase

Why Choose Servo Enterprises Autoclaves?

At Servo Enterprises, we don’t just manufacture equipment—we engineer performance. With decades of experience in industrial laboratory solutions, our autoclaves integrate technical excellence with application-specific design, making them a trusted choice for industries that demand reliability, safety, and precision.

Our Products

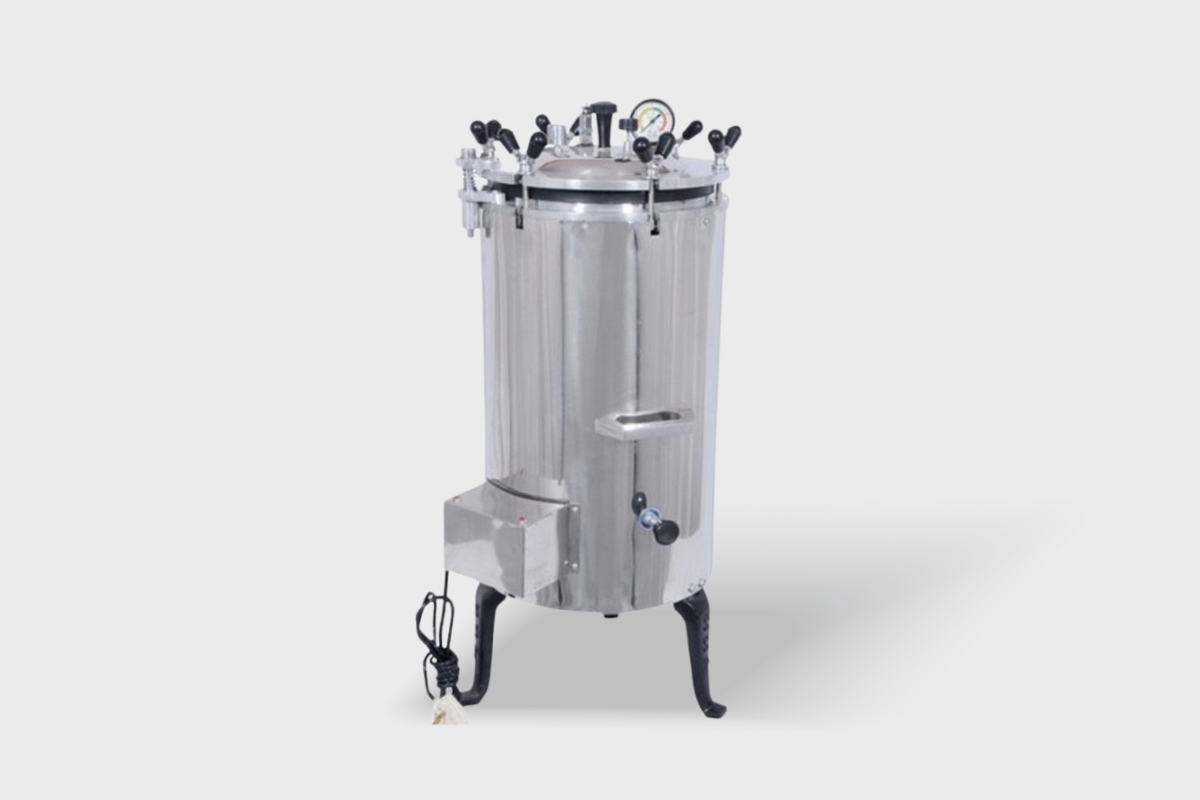

Vertical Autoclave

Vertical autoclaves are compact, space-saving sterilizers designed for laboratories and medical setups. Ideal for small batches, they offer efficient high-pressure steam sterilization with easy top-loading access and precise temperature control.

Horizontal Autoclave

A high-capacity sterilization units used in industrial and research environments. Built for bulk processing, they feature front-loading chambers, advanced pressure regulation, and uniform steam distribution for consistent sterilization results.
