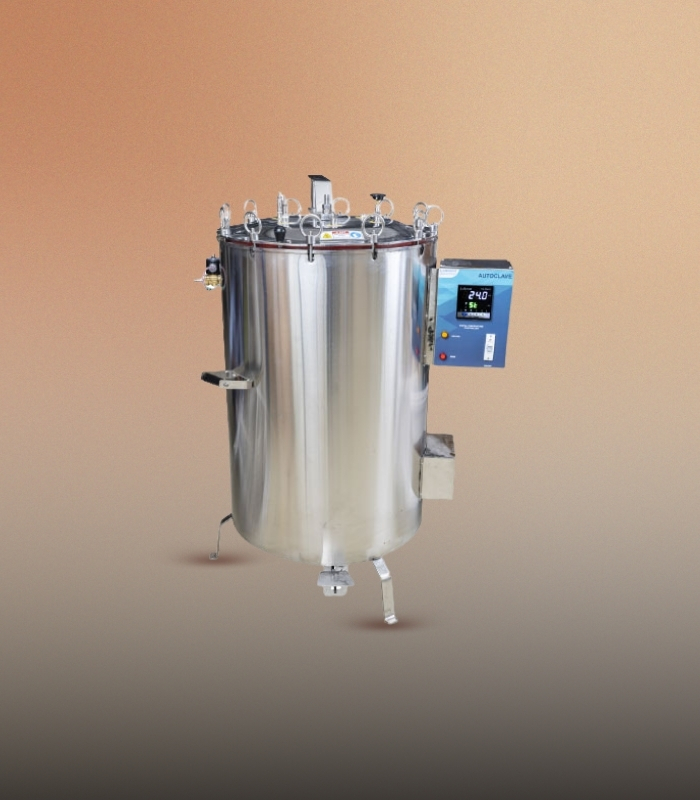

Vertical Autoclave for Laboratories
Engineered for reliability, safety, and consistent performance, the Vertical Autoclave from Servo Enterprises offers a powerful solution for sterilization across industrial and laboratory settings. Built to meet the demanding standards of pharmaceutical, research, and quality control environments, this unit combines robust construction with advanced control features to ensure thorough and uniform sterilization of a wide range of materials.
Whether you are decontaminating laboratory glassware, instruments, culture media, or biohazard waste, our vertical autoclave ensures high-temperature steam sterilization under controlled pressure — delivering results that comply with global standards.
Sturdy Stainless-Steel Construction
Built using corrosion-resistant stainless steel (Grade 304/316), ensuring durability, easy cleaning, and long-term performance even under frequent use.
Digital PID Temperature Controller
Integrated with a precision controller for real-time monitoring and programmable sterilization cycles, enhancing accuracy and safety.
Pressure Gauge with Safety Valve
Monitors internal pressure and includes automatic cut-off and release mechanisms to prevent overpressure situations.
Vertical Space-Saving Design
Ideal for facilities with limited floor space, offering maximum internal capacity without compromising footprint.
Heater Protection System
Auto-cutoff feature safeguards the heater in case of water level drops, protecting internal components and reducing downtime.
| MODEL | a) Rectangular/Horizontal | SARH 1 | SARH 2 | SARH 3 | SARH 4 | |
| b) Cylindrical/Horizontal | SACH 1 | SACH 2 | SACH 3 | SACH 4 | ||
| c) Cylindrical/Vertical | SACV 1 | SACV 2 | SACV 3 | SACV 4 | ||
| Chamber Size Cap | a) – L x W x H cm/l | 40 x 40 x 60 / 96 | 45 x 45 x 80 / 162 | 60 x 60 x 120 / 432 | 90 x 90 x 150 / 1215 | |
| b) & c) Dia x Depth cm/l | 40Ø x 60 / 75 | 45Ø x 80 / 127 | 60Ø x 120 / 340 | 90Ø x 150 / 954 | ||
| CONSTRUCTION | DOUBLE WALLED | |||||
| MATERIAL OUTER | Mild steel sheet finished with powder coating | |||||
| INNER CHAMBER | Stainless Steel | |||||
| Sterilization system | High pressure through steam boiler | |||||
| Working pressure kg/cm² | 1 to 1.5 | |||||
| Heater Kw | 6 | 9 | 12 | 24 | ||
| Boiler Capacity (dia x depth) cm/l | 30ø x 45/32 | 45ø x 60/95 | 55ø x 70/166 | 60ø x 80/226 | ||
| Pressure gauge range kg/cm² | 0 to 3 | |||||
| Working Temperature range °C | Ambient +5°C to 131°C | |||||
| Temperature controller | PID Digital temp. controller | |||||
| Safety Valve | Adjustable pressure and Steam cock | |||||
| Power Source | AC 440v – Three phase / AC 220v, 50/60 hz, Single phase | |||||
At Servo Enterprises, every Vertical Autoclave is a result of precision engineering, industry insight, and a deep understanding of sterilization demands across critical sectors. More than just a sterilization unit, our vertical autoclaves are built to deliver unwavering performance, operational safety, and long-term durability — even in the most demanding industrial and laboratory environments.
