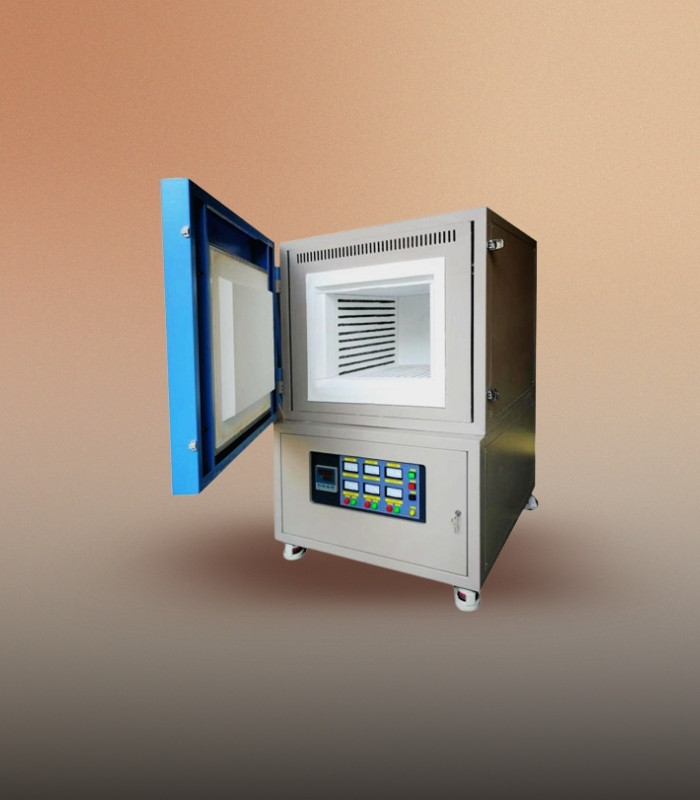

Muffle Furnace for Precision Heating
The Muffle Furnace by Servo Enterprises is a high-temperature laboratory heating device engineered to deliver consistent and controlled thermal environments for various industrial and research applications. Designed with advanced insulation and programmable temperature control, our Muffle Furnaces ensure uniform heating and energy efficiency, making them a reliable choice for ashing, annealing, material testing, and heat treatment processes.
Whether you’re working in a metallurgy lab, a ceramics unit, or a quality control division, the Servo Muffle Furnace meets the most demanding thermal processing standards with exceptional precision, safety, and durability.
High-Temperature Capability
Reaches up to 1200°C–1800°C based on model type, ideal for demanding industrial processes.
Fast Heat-Up Time
Superior insulation and heating elements ensure quick temperature ramp-up with minimal energy loss.
PID Digital Temperature Controller
Ensures precise control, accuracy, and repeatability in temperature profiles.
Corrosion & Thermal Shock-Resistant Chamber
Durable inner muffle chamber made of high-grade ceramic or refractory materials.
Designed with Protection
Equipped with over-temperature protection, insulated outer casing, and auto shut-off features.
Low Maintenance
Designed for long-term operation with minimal upkeep, reducing downtime and costs.
| MODEL LAB | SMuF – 1 (K/R/B) SGF – 1 |
SMuF – 2 (K/R/B) SGF – 2 |
SMuF – 3 (K/R/B) SGF – 3 |
SMuF – 4 (K/R/B) SGF – 4 |
||
|---|---|---|---|---|---|---|
| GROOVED FURNACE CHAMBER SIZE – WxDxH cm |
10 x 25 x 10 | 12.5 x 25 x 12.5 | 15 x 30 x 15 | 30 x 30 x 30 | ||
| Capacity liter | 2.25 | 3.87 | 6.75 | 27 | ||
| CONSTRUCTION | DOUBLE WALLED | |||||
| MATERIAL – Outer Chamber | Mild steel sheet finished with powder coating | |||||
| Inner chamber | Stainless Steel | |||||
| Heater Kw | 3 | 3.5 | 4 | 4.5 | ||
| Temperature range (K/R/B) °C | Model K = 1000°C / Model R = 1400°C / Model B = 1800°C | |||||
| Working Temperature (K/R/B) °C | Model K = 950°C / Model R = 1350°C / Model B = 1750°C | |||||
| Temperature controller | Digital PID Temp. controller | |||||
| Temperature accuracy | ± 0.5° C | |||||
| Heating Element | Kanthal A-1 / Kanthal AF / Molybdenum / Vacuum board | |||||
| Safety device | ELCB Overheating protection | |||||
| INSULATION | Ceramic Fiber wool | |||||
| Power Source | AC 440v, Three phase / AC 220 V 50/60 Hz single phase | |||||
At Servo Enterprises, we don’t just build equipment—we deliver confidence and precision to every lab we serve. Our Muffle Furnaces are a testament to our engineering excellence, offering uncompromised thermal performance tailored to the evolving needs of modern industries.
